【Typical Clients】Yuchai Group Jinchuang Auto Parts Co., Ltd: The company mainly produces various parts of diesel engines, steering devices, lubricating bumps as well as design and manufacture of mould, which is an independent subsidiary of Yuchai Group. The company has strong technical force, complete and advanced equipments.

【Problems】The company produces tens of kinds of products ranging from manual gear box, diesel engine, steering devices, lubricating bumps and design and manufacture of mould. During the entire production process, to enhance the efficiency of inspection and to meet demands of different products in performance are important factors to decide whether the workpiece can be in conformity with designing requirements. Thus, flexibility, comprehensiveness, efficiency, versatility and precision are the key factors to measuring operation.

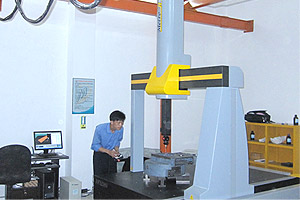

【Solutions】Enjoy10128 applies PH10T+TP20 measuring probe with measuring range 1000×1200×800mm. Its maximum permissible indication error for length measurement can reach 2.5+3.0L/1000 um and measurement repeatability precision can be 1.5um. The machine is equipped with an advanced complete set of PS-DMIS measuring software, providing optimum measurement for shape, dimension and position of various products and conducts many kinds of measurement and inspection tasks including initial article inspection, profile measurement, reverse engineering, process control, mould inspection, work fixture, file archive and others, which greatly increases productive capacity, improves the quality of products, advances company quality and realizes higher grade measuring precision. Quality claims which happened frequently in the past never appear now, and thus losses of the company are greatly reduced. For these, the company has won benefit and good reputation.

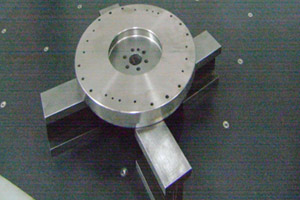

Process control — Operators should wipe and clean the workpiece, fix it onto an inspection tool, and fix the workpiece with the inspection tool onto the worktable of the measuring machine; according to the measuring requirements, complete the verification of measuring probe in every angle and then conduct offline programming and simulation run or carry out pre-stored measuring program to inspect parallelism, flop, verticality and position. The results of inspection may be printed and also directly stored or simultaneously store the whole measuring process and program. For dimension data with over-tolerance, it can be analyzed by using Form-Error graph error report. From carrying out process analysis through graphs, machine operators can be instructed to regulate parameter and setup of processing equipment.

High speed — Enjoy coordinate measuring machine takes advantage of advanced technology of gantry measuring machine and its unique design ensures that the machine has higher running speed as well as great precision and dynamic characteristic. The design of air-float with large span guarantees the stability and rigid motion of machine running. All the three axes make use of granite guideway which can reduce the influence of temperature changes upon precision, pave foundation for long-term stable precision, strengthen the reliability of the machine and reduce the cost incurred by maintenance. By decreasing pause and corner, continual axis motion interpolate control and true 3D vector optimization (flight characteristics) collect data more precisely, which increases efficiency and minimizes the time required by inspection process.

High performance –The machine can provide measuring function for dimension, position, shape, curve and cambered surface as well as scan of unknown curve and cambered surface. Enjoy measuring machine has the scanning function of TP-Scan and can meet the requirements on development of new products and design and manufacture of mould. The advanced calculation method enables high precision scan rapidly. Meanwhile, the unique infiltration function can automatically exclude the inappropriate data points. The point cloud function may form curve from flying spots and automatically create a cambered surface from curves. “Scanning function is very important for operation”, chief engineer said, “Our products are all traditional two-dimensional drawings. We need to apply advanced paperless management and establish 3D CAD to adapt to development of modern manufacturing industry. The machine helps us produce many models of the workpiece and carry out finite element analysis. We have obtained the required data to manufacture these models.” CAD model can be established precisely without any mathematical model of the workpiece, achieving the digitalization of mould designing, product processing, measurement and inspection, and comprehensive management of quality control.

Flexibility – We can see the mathematical model of the workpiece through PS-DMIS software which can clearly indicate where the measured features are. The software operates easily and provides 3-2-1 rapid coordinate creation and other methods, which greatly saves the time spent on looking for positive coordinate system by the machine and it is convenient to measure. The workpiece can be aligned to the position set by users correctly and automatically by using CAD geometry measuring. PS-DMIS can download 3D CAD model from any CAD system. Click CAD surface data points with mouse and automatically obtain normal value and vector direction, inspect and analyze the shape of workpiece by defining comparison with mathematical model. Seamless connection with CAD data can be realized and also the input and output of iges, step, DXF and Parasolid XT format CAD data, recurrence of CAD mathematical model entity and wire frame, layering and coloring of CAD mathematical model, input of multi CAD mathematical model, CAD mathematical model imaging, automatic identification of CAD mathematical model theoretical elements and processing of point cloud data. Meanwhile, graphic workpiece model and analog simulation of measuring path can be finished, which enables users to clearly understand the entire operation process of machine through graphs and modify in time so as to avoid errors or collision incurred during online measurement. The particular “pull and release” operation makes measurement easy and convenient.

PH10T automatic rotary measuring head enables the measuring probe to accurately approach all characteristics of the workpiece.

Enjoy measuring machine and PS-DMIS software bring Jinchuang Company larger flexibility. “Yuchai Group has produced so many measuring machines which measure rapidly and precisely and they have strong functions. However, only this type of machines is endowed with functions and efficiency of multiple machines. It can help us find problems which we could not find before and make improvement in technology and process to enhance the product quality in essence. We get a practical standard.” Our CEO said, “What a good measuring machine! It produces great efficiency for us. We’d better own it earlier.”
