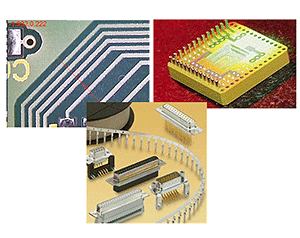

The electronic products feature small size, thinness and softness, which quality could be improved greatly by optical measuring equipment. Metro-3D combined measuring devices integrate optical imaging principle and advanced auto-control system and widely-applied measuring software PS-DMIS, which enables itself to present us a splendid image measuring world. The main features of image measuring system are non-contact measuring to remove the measuring deflection which is applicable to measuring the thin-walled and soft parts; strong image amplifying functions and strong measuring function for small size parts; fast measuring speed which greatly improves the measuring efficiency; high density of point selection which ensures high reliability of measuring.

Simple loading and clamping operation; trigger probe has the functions of measuring the normally-shaped parts.

The greatest advantage is to unify the coordinate system of two measurings, which is very important for the products that have extremely high requirements for the installation dimensions.

PS-DMIS software renders strong support to the measuring machine including fast location, stepless focusing, image amplification with any multiplying factor, no need for recalibration, strong boundary judgment function, flexible edge-locating tools, freely-set filtering for burrs and dusts, strong graphics report and analysis functions.

It can be equipped with contact probes to become a composite imager so as to realize multi-purposes of the same machine. Also, it can finish the measuring synchronously under the same coordinate system. The operating mode includes manual operation and automatic operation.
