Swift

Time:2014-02-20 17:15Source:Metro-3D Click:

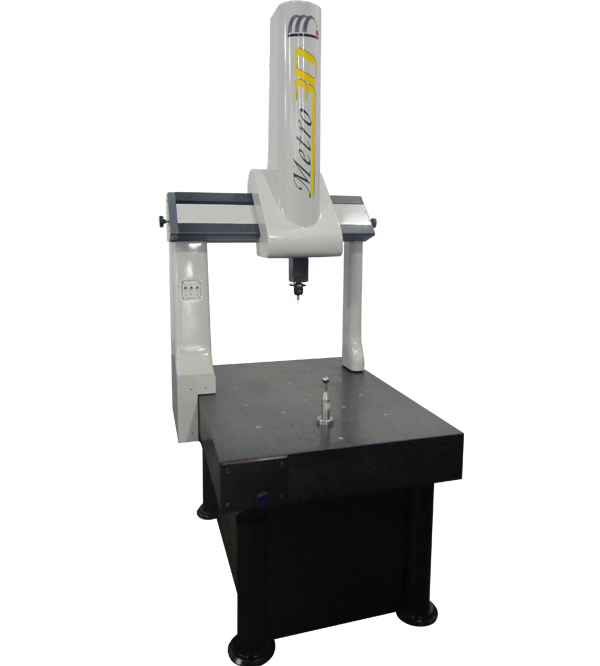

Swift series of manual and CNC measuring machine, is a generic detection schemes for modern manufacturing enterprises, parts processing and manufacturing companies of all sizes to provide convenient, fast, the practical geometry metering solutions, is an economical and efficientenergy, maintenance-free measuring machine. Configuration software, the most advanced intelligent graphical measurement, process control applied to the workshop, first-article inspection, final inspection, reverse engineering, and other measurement tasks. Good operability with the perfect combination of efficient performance, is economical, high-performance measuring machine complete any inspection applications preferred.

practicality with the perfect combination of high performance

▪ All three axes are made of high-quality "Taishan green" granite, three-axis has the same temperature characteristics, good temperature stability and anti-aging deformation capacity, rigidity and dynamic geometric error minimum amount of deformation, to ensure the stability of the accuracy.

▪ superior design experience to ensure optimization of the X, Y, Z three directions, a reference arrangement, enhanced bending resistance between the respective axes, and to improve the mechanical rigidity and on the basis of ensuring the smooth movement, to ensure the accuracy.

▪ overall dovetail rails effectively eliminate the movement Wiggler, to improve measurement accuracy and repeatability.

▪ high-precision, high gas film rigidity self-cleaning preload air bearing, the measuring machine has good movement smooth.

▪ Z axis pneumatic balance and self-protection device to improve the motion characteristics of the Z to.

▪ high-resolution and high-precision length measurement baseline and probe system.

▪ advanced intelligent graphical measurement software system.

▪ diversity and multi-purpose applications; increase in the shadow of the head and the laser lens, to complete the tiny dimensions or reverse measurement.

▪ machine is stable and reliable, aesthetic, economic, and maintenance-free.

▪ the technical development of the follow-up support, CNC models can be upgraded to take full advantage of the value in use of the aircraft.

economical and practical, reliable and stable integration

Is an economical high-performance work CNC measuring machine, configure the advanced and stable numerical control system and powerful operation is simple measurement software, capable to college to complete a variety of measurement tasks, have a more reliable guarantee economic premise and stability, greatly reducing the late maintenance costs, and rich configuration and excellent performance, flexible application, become the most cost-effective measurement system.

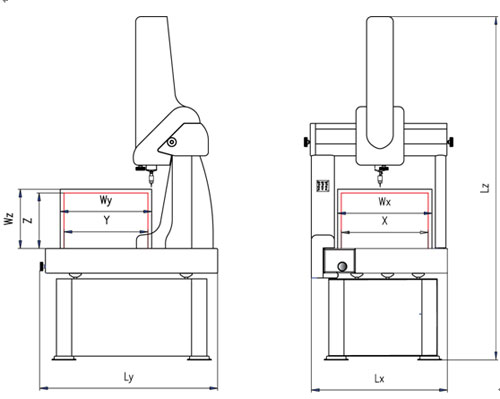

测量范围/STROKES
X(mm)
Y(mm)
Z(mm)
400~1200
600~2000
300~1000
精度指标/MEASURING ACCURACY
MPEE (µm)
3.0+4.0L/1000起
Rep. (µm)
2.5起
