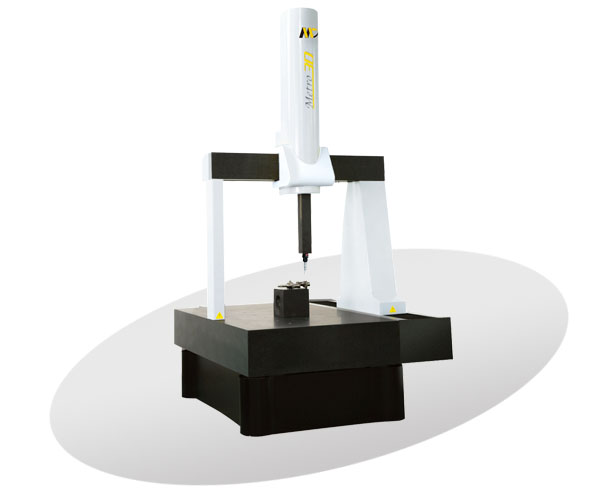

Enjoy-plus
Enjoy-plus series run fast to ensure precise, stable and reliable performance. Projecting the machine running under the premise of ensuring the overall configuration having a sufficient strength and stability, a fast and accurate, can be effective to complete any more precise measurement detection tasks can also be completed the scanning of the measurement of a variety of complex shapes and contour, such as precision box-type parts, as well as the complex shapes of blades, gears, cams, spiral compressor rotor can be achieved through the flexible application.
For always need to pay close attention to every aspect of the production process quality control of the user, Enjoy-plus become the ideal choice for high quality measurement system by virtue of its superior dynamic performance and good precision repeatability.
high-quality, high-precision perfect combination
▪ more precise accuracy, more long-term stability, more efficient performance, and enhance the use of higher value and greater use of space

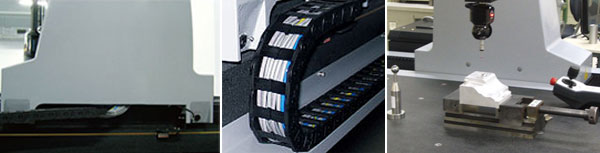

▪ thick solid granite countertops, ensure that on the basis of long-term stability and greatly reduce the impact of vibration on accuracy
▪ the overall integration dovetail rail, improve machine accuracy and repeatability, smooth movement higher
▪ moving the bridge using a unique large span flotation design, strong bearing capacity, ensure the machine running at high speed Wiggler minimum stability
▪ pre-load the encircling air bearing distribution, high-bearer, to ensure the smooth and stable machine running
▪ powerful and stable control system, with excellent mechanical properties of a perfect match
▪ very good dynamic performance and repeatability, term life
|

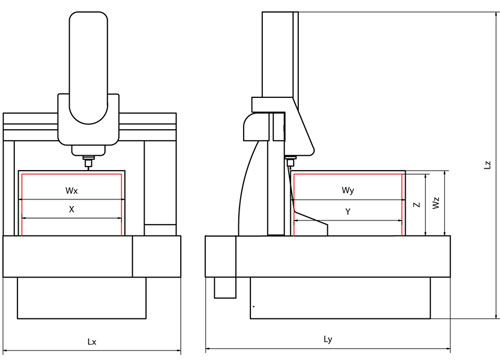

测量范围/STROKES
|
||
|
X(mm)
|
Y(mm)
|
Z(mm)
|
|
400～1500
|
500～4000
|
400～1200
|
|
精度指标/MEASURING ACCURACY
|
MPEE (µm)
|
1.2+3.0L/1000起
|
|
Rep. (µm)
|
1.5起
|
|
