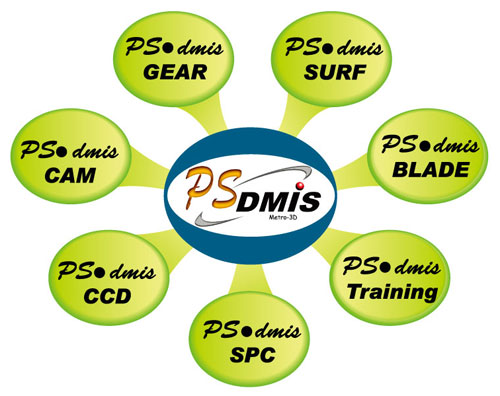

【Application of special measuring module】PS-DMIS is the strongest measuring software of measuring machine at present, which provides the perfect solution to the geometric measurement, from simple box type parts to complex contours and curve surfaces. With the special measuring module, it is able to finish the special measuring tasks for gears, cams, blades, statistics analysis and micro sizes etc. which greatly expands its measuring space and improves the application efficiency.

【PS-DMIS Gear measuring module】It provides perfect gear measuring assessment and analysis tool to make the complex gear measuring simple.

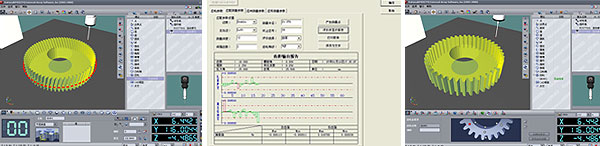

● There is professional graphic user interface adopting many WindowsXP features such as supporting the right key and Tooltip etc. The users could input the proper data according to the prompts and the software has the functions to report the error or reject the improper data (including data range type and formats).

● The assessment results can be output in the form of 3D visual data list or graphics; also the user could print the data results and corresponding graphics as required.

● PS-DMIS Gear provides the convenience to the users in compilation of test program and production of definition and reports. Among them, the compilation of the part test program is the most immediate task, thus, the operator should tell the software how to operate by filling in the sheets required by rules. PS-DMIS Gear allows the users to select the required report templates according to a series of pre-defined standard formats, and then simply load the software program for measuring.

● In order to enable the users to know more about the measuring information, the software should simulate and map the measuring tracks and normal vector corresponding to the probing points in real time. After the completion of measuring, the data should be stored in the form of documents. In this way, the user could process the data off line and make assessment for it, which provides more options and flexibility to the users. The assessment of sub-system should be combined with the current gear tolerance standard in China by which the user could make the software assign corresponding tolerance value or limit deviation value automatically simply by inputting the tolerance grade or limit deviation characters. Besides, the users could use other standards to correct corresponding tolerance value so as to provide more convenience to the assessment of error grades. The software could carry out comprehensive measurement and assessment in three groups of errors for the gears of various specifications and sizes. Therefore, it has more generality and more benefits over the corresponding gear measuring devices.
